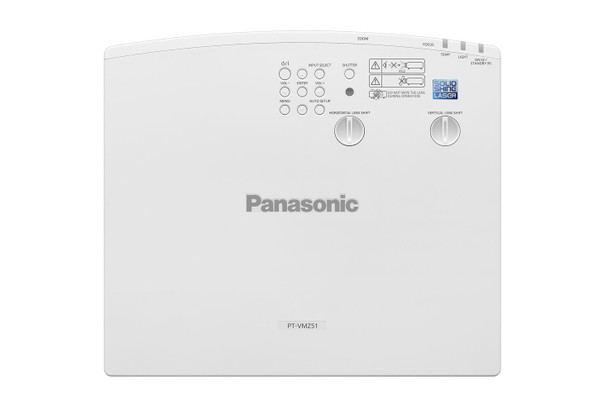

Panasonic PT-VMZ51 5,200lm LCD WUXGA Laser Projector

Panasonic PT-VMZ51 Laser Projector
The PT-VMZ51 produces an impressive 5200 ANSI lumens brightness great in a bright room and large conference room. The laser light source is perfect for high use environments with a life up to 24,000 hours it can be simply abused with 8 hours of use per day every day of the year and still last over 8 years. With a wide ranging 1.6x optical zoom the PT-VMZ51 is also a great candidate to replace an older lamp projector in the same position without having to worry about rewiring. Panasonic have also backed it up with a stellar warranty for 5 years or 10,000 hour of use for long term peace of mind.

Vivid Images in Bright Environments
SOLID SHINE Laser phosphor drive with advanced LCD optical engine projects bright, vivid, and detailed images regardless of artificial light levels in the room. Text is finely resolved, while graphics and video retain high color saturation and contrast for immersive viewing.

High Brightness from a Compact Body
Deploy up to 6,000 lm*5 of brightness from a projector weighing just 7.2 kg (15.87 lbs), currently the smallest and lightest LCD laser projector series in the world*1. High brilliance makes pictures pop even under the glare of interior lights, making projection more engaging than ever.

High 3,000,000:1*6 Contrast
High-precision digital laser light output modulation achieves 3,000,000:1*6 dynamic contrast while minimizing power consumption. High-contrast performance adds depth, dimensionality, and realism to video, defining details in shadows even when bright and dark scenes frequently interchange.

Projector type LCD projectors
Display method Transparent LCD panel (x 3, R/G/B)
Display Device -> Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display Device -> Drive method Active matrix method
Display Device -> Number of pixels 2,304,000 (1920 x 1200) pixels
Light source Laser diodes
Light output *1 5,200 lm
Light output (ANSI) 5,200 lm
Time until light output declines to 50 % -> NORMAL *4 20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO *4 24,000 hours [ECO]
Time until light output declines to 50 % -> QUIET *4 20,000 hours [QUIET]
Resolution WUXGA (1920 x 1200 pixels)
Contrast Ratio (typ.) *2 3,000,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal) 0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio *2 85%
Lens 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm
Digital Zoom Extender *5 Throw Ratio 1.09–2.21:1*5 (Corresponding value. When used together with optical zoom.)
Lens shift -> Vertical(from center of screen)　 +44 %
Lens shift -> Horizontal(from center of screen)　 ±20 %
Keystone correction range Vertical: ±25 °, Horizontal: ±35 °
Installation Ceiling/floor, front/rear, free 360-degree installation
Terminals -> HDMI™ IN HDMITMTM 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p*6 signal input), CEC supported*7
Terminals -> COMPUTER IN（D-SUB 15pin） D-sub 15-pin (female) x 2(RGB/YPBPR/YCBCR)
Terminals -> AUDIO IN(M3 Stereo Mini Jack) M3 stereo mini-jack x 2
Terminals -> AUDIO OUT(M3 Stereo Mini Jack) M3 stereo mini-jack x 1
Terminals -> SERIAL IN D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals -> DIGITAL LINK IN / LAN RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control)(HDBaseTTM compliant), 100Base-TX (Compatible with PJLinkTM [Class 2],HDCP, Deep Color, 4K/30p*6 signal input)
Terminals -> LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLinkTM [Class 2]
Terminals -> USB TYPE A USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,power supply (DC 5 V, maximum 2 A*8)
Protocol versions IPv4, IPv6*9
Power supply AC 100 V–240 V, 50/60 Hz
Maximum power consumption *11 305 W (3.1–1.3 A) (310 VA)(Power consumption is 295 W at 200–240 V)
On-mode power consumption(Operating mode) -> Normal *11 [NORMAL]
270 W (100–120 V),
255 W (200–240 V)
On-mode power consumption(Operating mode) -> Eco *11 [ECO]
195 W (100–120 V),
185 W (200–240 V)
On-mode power consumption(Operating mode) -> Quiet *11 [QUIET]
190 W (100–120 V),
180 W (200–240 V)
Built-in speaker 10 W monaural
Cabinet materials Molded plastic
Filter Included
Estimated filter maintenance cycle *12 Approx. 20,000 hours
Operation noise -> Normal *2 36 dB [NORMAL]
Operation noise -> Eco *2 36 dB [ECO]
Operation noise -> Quiet *2 26 dB [QUIET]
Dimensions (W x H x D) 399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts)399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position)
Dimensions (W x H x D) -> Width (not including protruding parts) 399 mm (15 23/32˝)
Dimensions -> Width (including protruding parts) 399 mm (15 23/32˝)
Dimensions -> Height (not including protruding parts) 115 mm (4 17/32˝)
Dimensions -> Height (including protruding parts) 133 mm (5 1/4˝ )
Dimensions -> Depth (not including protruding parts) 348 mm (13 11/16˝)
Dimensions -> Depth (including lens) 348 mm (13 11/16˝)
Weight [kg] *13 Approx. 6.5 kg (14.33 lbs)
Operating environment -> Operating temperature 0–45 °C (32–113 °F)
Operating Environment -> Operating humidity (No condensation) 20–80 % (no condensation)
Applicable software Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®*15, Wireless Projector App for iOS/AndroidTM*16
