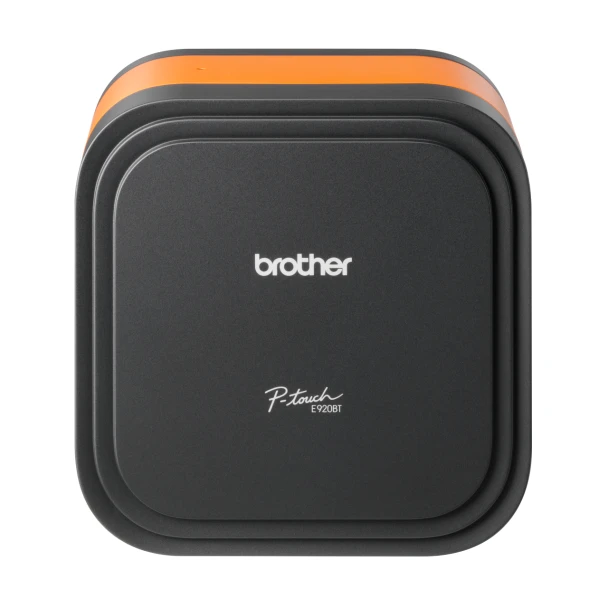

Brother PT-E920BT P-touch CUBE Pro Label Maker NEW 36mm with Bluetooth

Portable Bluetooth Label Maker for Electricians and Data Installers

• Print durable, industry-compliant labels, up to 36mm wide
• Design, preview and print industry-specific labels with the Brother Pro Label Tool app
• Fast batch printing with 20mm/sec, easy-peel label strips and a built-in automatic cutter (half and full)
• Use with Brother TZe Pro tapes for labels resistant to water, abrasion, chemicals and extreme temperatures
• Connect via Bluetooth from your phone or USB-C from your desktop
• Print anywhere with a long-life Li-ion battery included

Print wirelessly with the Brother Pro Label Tool app
Cut down time on site with a trade-focused mobile app built for fast, practical labelling. With built-in Bluetooth, create and print job-ready labels for electricians and data installers straight from your smartphone or PC on demand, wherever the work takes you.

Trade-ready templates for Electrical & Data Labelling
From cable wrap, cable flag and patch panel to punch block and faceplate labels, choose from a wide range of industry-standard layouts or build your own. Add symbols, QR codes and barcodes, then customise and serialise labels to match your job, so you can label once and get back on the tools.

Versatile output, with wide 36mm labels
Leave label size restrictions behind with a versatile range of tape widths for every application. Choose from 3.5mm, 6mm, 9mm, 12mm, 18mm and 24mm, through to wide 36mm tapes for compliant (AS/NZS 3000) safety signage, standout switchboard callouts, and clear distribution board identification.

Batch print for high-volume jobs
More time on the tools, less on the labeller, with fast print speeds of 20mm/sec and a built-in automatic cutter (half and full) to batch print multiple labels in one continuous strip for fast peel-and-apply.

Site-ready in a compact footprint
At just 1.17kg (with tape and battery), the PT-E920BT packs serious capability into a compact, lightweight design, ideal for moving from your van to switchboard without weighing down your toolbelt.

Trade-grade TZe Pro Tapes
Brother’s TZe Pro Tapes are built and tested to withstand even the toughest conditions, laminated with six layers of material. From pouring rain to scorching heat, be confident in labels that are waterproof, abrasion and chemical-resistant.

What is included?

    PT-E920BT Label Maker
    36mm TZe black on yellow strong adhesive tape
    USB Type C cable
    Li-Ion rechargeable battery (PA-BT-003)

Basic Specs
Keyboard

No Keyboard
Display Type

Smartphone Only
Media Type

TZe, FLe tape
Available Tape Widths

3.5, 6, 9, 12, 18, 24, 36mm
Product Dimensions (Width X Depth X Height)

138 mm × 94 mm × 138 mm
Weight

1.17 kg
Print Speed

20 mm/sec
Warranty

3 years Return to Base Warranty
What's in The Box

PT-E920BT labelling machine, 36mm TZe black on yellow strong adhesive tape, USB Type C cable, Li-Ion rechargeable battery (PA-BT-003)
Print
Resolution

360 dpi
Number of Characters

Smartphone Select
Number of Symbols

Smartphone Select
Connectivity
Connectivity

USB 2.0 Full Speed Type C, Bluetooth® Dual-Mode (Classic + LE)
Media
Maximum Tape Width

Up to 36 mm
Printing Width

32 mm
Functions
Cutter

Auto
Copy Printing

Yes
Mirror Printing

Yes
Preview

Smartphone Select
Memory
File Storage

No
Memory Buffer Size

No
Power
Power Source

Li-Ion battery (PA-BT-003 included)
Auto Power-Off

Yes
Supported Operating Systems
Supported OS

Windows 10, 11, Mac OS 17, 18, 26, Android 12, 13,14,15,16
Software and Apps
Software And Apps

P-touch Editor 6
Mobile Apps

Pro Label Tool
