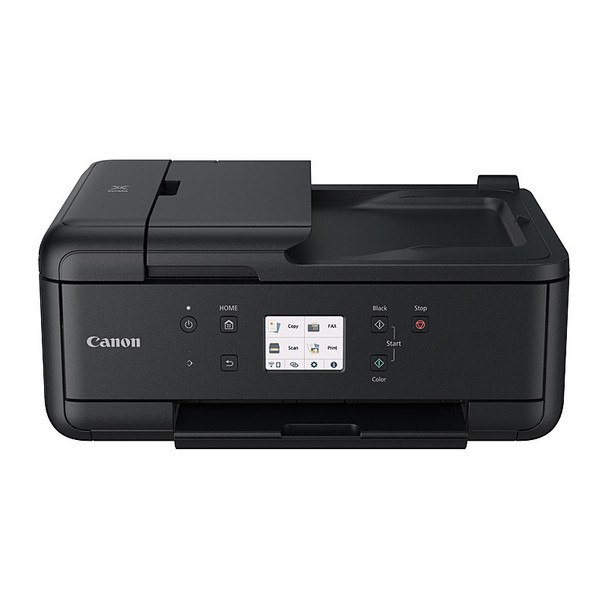

Canon Pixma Home TR7660A A4 Colour Multifunction

CANON PIXMA HOME OFFICE TR7660a

EQUIPPED WITH ALL THE BASIC HOME OFFICE PRINTER FUNCTIONS
The PIXMA HOME OFFICE TR7660a is a home office printer that has the features you require for personal business such as print, copy, scan, and fax.
EFFICIENT PRINTING
The PIXMA HOME OFFICE TR7660a offers high productivity printing with print speeds of approximately 15.0 ipm for black and 10.00 ipm for colour.
EASY SETUP WITH YOUR PC OR SMARTPHONE
The PIXMA HOME OFFICE TR7660a has improved Wi-Fi connectivity for simple setup, enabling quick and easy printing from your computer or smartphone. Connecting to a smartphone is even easier with the QR code direct connection function.
AUTO DUPLEX PRINT
Save time and money with the auto duplex printing function, which automatically prints on both sides of the paper.
AUTO DOCUMENT FEEDER
Scan or copy your documents efficiently with the auto document feeder function.

GENERAL FEATURES
Model PIXMA HOME OFFICE TR7660a
Ink Type 5 Individual Ink Tanks (PGBK / C / M / Y / BK)
Maximum Print Resolution 4,800 dpi*2 x 1,200 dpi
Size Approx. 438 x 350 x 190
Approx. 17.3 x 13.8 x 7.5
Weight Approx. 7.9 kg
Approx. 17.3 lbs
Display 3.0" / 7.5 cm LCD (Touch Screen, Colour)
Paper capacity- Auto document feeder Paper Handling (Plain Paper)- A4 / LTR: 20, LGL: 5
Interface USB / Wireless / QR code
Input Power AC 100 V - 240 V, 50 Hz / 60 Hz
PRINT SPEED
Document: Colour*3 Approx. 10.0 ipm
Document: Black & White*3 Approx. 15.0 ipm
Photo (4" x 6")*3 Approx. 37 sec
POWER CONSUMPTION
OFF Approx. 0.3 W
Standby (MFP: scanning lamp is off)
USB connection to PC Approx. 1.0 W
Standby (all ports connected, MFP:
scanning lamp is off) Approx. 1.8 W
Copying*28 USB connection to PC Approx. 13 W
ENVIRONMENT
Operating Environment*24 Temperature: 5 °C - 35 °C, Humidity: 10 %RH - 90 %RH
(no dew condensation)
Recommended Environment *25 Temperature: 15 °C - 30 °C, Humidity: 10 %RH - 80 %RH
(no dew condensation)
Storage Environment Temperature: 0 °C - 40 °C, Humidity: 5 %RH - 95 %RH
(no dew condensation)
ACOUSTIC NOISE (PC PRINT)
Quiet Mode Available
Acoustic Noise (PC Print) Plain Paper*27 Approx. 46.5 dB(A)
PRINT HEAD / INK
Number of Nozzles Total 4,096 nozzles (PGBK / C / M: each 1,024 nozzles,
Y / BK: each 512 nozzles)
Ink Tank 5 Individual Ink Tanks (PGBK / C / M / Y / BK)
PRINTABLE WIDTH
Up to 203.2 mm (8") / Borderless: Up to 216 mm (8.5")
PRINTABLE AREA
Borderless Printing*4 Top / Bottom / Right / Left margin: each 0 mm
Bordered Printing
• #10 Envelope / DL Envelope
Top: 8 mm, Bottom: 12.7 mm, Right: 5.6 mm, Left: 5.6 mm
• Square (127 mm x 127 mm)
Top: 6 mm, Bottom: 6 mm, Right: 6 mm, Left: 6 mm
• Square (89 mm x 89 mm)
Top: 5 mm, Bottom: 5 mm, Right: 5 mm, Left: 5 mm
• LTR / LGL
Top: 3 mm, Bottom: 5 mm, Right: 6.3 mm, Left: 6.4 mm
• Other
Top: 3 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
Bordered Auto 2-sided printing
• LTR
Top: 3 mm, Bottom: 5 mm, Right: 6.3 mm, Left: 6.4 mm
• Other

SUPPORT MEDIA
Rear Tray
Plain Paper (64 g/m2 - 105 g/m2),
High Resolution Paper (HR-101N),
Photo Paper Pro Platinum (PT-101),
Photo Paper Plus Glossy II (PP-301) (for Pan-American / Oceania),
Photo Paper Pro Luster (LU-101),
Photo Paper Plus Semi-gloss (SG-201),
Photo Paper Glossy (GP-701) (for North America / Oceania),
Matte Photo Paper (MP-101),
T-Shirt Transfer, Envelope,
Magnetic Photo Paper (MG-101) (for except China),
Restickable Photo Paper (RP-101) (for except China),
Greeting Card (manufactured by Avery and RedRiverPaper),
Cardstock (manufactured by Neenah Paper and INKPRESS),
Dark Fabric Iron on Transfers (DF-101),
Light Fabric Iron on Transfers (LF-101),
Premium Fine Art Rough (FA-RG1)
Cassette Plain Paper (64 g/m2 - 105 g/m2)
PAPER SIZE
Rear Tray
A4, A5, B5, LTR, LGL, #10 Envelope, DL Envelope,
Card Size (91 mm x 55 mm), 4" x 6", 5" x 7", 7" x 10", 8" x 10",
Square (89 mm x 89 mm, 127 mm x 127 mm),
Custom Size (width: 55 mm - 215.9 mm, length: 89 mm - 676 mm)
Cassette A4, A5, B5, LTR,
Custom Size (width: 148 mm - 215.9 mm, length: 210 mm - 297 mm)
PAPER SIZE (BORDERLESS)
A4, B5, LTR, 4" x 6", 5" x 7", 8" x 10", Card Size (91 mm x 55 mm),
Square (89 mm x 89 mm), Square (127 mm x 127 mm)
PAPER HANDLING (MAXIMUM NUMBER)
Rear Tray
• Plain Paper (LTR): Plain Paper (64 g/m2): 100
• Plain Paper (A4): Plain Paper: 100
• Photo Paper (4" x 6"): Photo Paper Pro Platinum (PT-101) /
Photo Paper Plus Glossy II (PP-301) (for Pan-American / Oceania) /
Photo Paper Plus Semi-gloss (SG-201) /
Photo Paper Glossy (GP-701) (For North America / Oceania) /
Matte Photo Paper (MP-101) /
Restickable Photo Paper (RP-101) (for except China): 1
Cassette • Plain Paper (LTR): Plain Paper (64 g/m2): 100
• Plain Paper (A4): Plain Paper (64 g/m2)
SUPPORT MEDIA FOR AUTO 2-SIDED PRINTING
Type Plain Paper
Size A4, A5, B5, LTR
PAPER WEIGHT
Rear Tray
Plain Paper: 64 g/m2 - 105 g/m2 ,
Canon paper: Max. paper weight Approx. 300 g/m2
(Photo Paper Pro Platinum (PT-101))
Cassette Plain Paper: 64 g/m2 - 105 g/m2
SCANNER FUNCTIONS
Scanner Type Flatbed (ADF / Platen)
Optical Resolution*6 1,200 dpi x 2,400 dpi
Scanning Bit Depth
(Input / Output)
Grayscale: 16 bit / 8 bit
Colour: RGB each 16 bit / 8 bit
Maximum Document Size Flatbed: A4 / LTR (216 mm x 297 mm)
ADF: A4 / LTR / LGL

COPY FUNCTIONS
Maximum Document Size A4 / LTR
Compatible Media
Size: A4, A5, B5, LTR, LGL, 4" x 6", 5" x 7",
Card Size (91 x 55 mm), Square (127 mm x 127 mm)
Type: Plain Paper,
Photo Paper Pro Platinum (PT-101),
Photo Paper Plus Glossy II (PP-301) (for Pan-American / Oceania),
Photo Paper Pro Luster (LU-101),
Photo Paper Plus Semi-gloss (SG-201),
Photo Paper Glossy (GP-701) (for North America / Oceania),
Matte Photo Paper (MP-101),
Dark Fabric Iron on Transfers (DF-101),
Light Fabric Iron on Transfers (LF-101)
Multiple Copy Black & White / Colour: max. 99 pages
FAX FUNCTIONS
Type Desktop Transceiver (Super G3, Colour Communication)
Applicable Line PSTN
Transmission Speed*30 Black & White: Approx. 3 sec
Colour: Approx. 1 min
Fax Resolution
Black & White: 8 pels/mm x 3.85 lines/mm (Standard)
8 pels/mm x 7.7 lines/mm (Fine)
300 dpi x 300 dpi (Extra Fine)
Colour: 200 dpi × 200 dpi
Print Size A4, LTR, LGL
Scanning Width A4 / LTR
Modem Speed Max. 33.6 kbps (Automatic fall back)
Compression Black & White: MH, MR, MMR
Colour: JPEG
Gradation Black & White: 256 levels
Colour: 24 bit (RGB each 8 bit)
Automatic Dialling Directory: Max. 100 locations
Group Dialling: Max. 99 locations
Transmission / Reception Memory*31 Approx. 250 pages
PRINTING SOLUTIONS
Available for AirPrint / Mopria / Canon Print Service (for Android) / PIXMA Cloud Link
/ Canon PRINT Inkjet/SELPHY (for iOS / Android)

Top: 5 mm, Bottom: 5 mm, Right: 3.4 mm, Left: 3.4 mm
