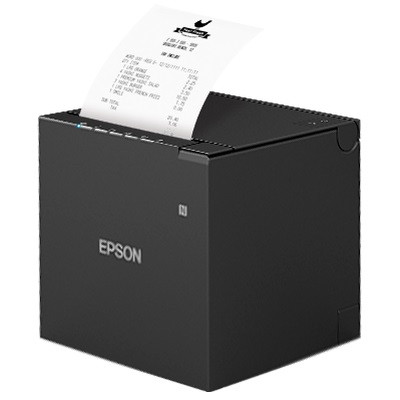

EPSON TM-M30III Black Receipt Printer with Built-In USB & Ethernet

Epson Ultra Compact Thermal Receipt Printer (ePOS ready)

Sleek and compact, ideal for mPOS receipt printing.

Modern and compact design — sleek 76.2mm thermal receipt printer; small size; supports both front and top paper exits; standard near-end sensor

Fast, stable network tethering — wired network communication with iOS® or Android™ mobile device via USB-C connection, at up to 20 Mbps

Versatile connectivity — built-in interfaces; USB-A x 2, USB-B, and Ethernet; optional dual Wi-Fi®/Bluetooth® interface available

POS hub capability — connect to USB POS peripherals; Sync & Charge feature can deliver up to 18 W of power to a mobile device

Ready for cloud printing and online ordering — Server Direct Print available to retrieve print jobs directly from the cloud

Simple configuration — easily set up a Wi-Fi or Bluetooth connection with the optional dual wireless interface

Fast print speed — quickly produce sharp and crisp text, barcodes and logos; speeds up to 300 mm/sec

World-class service and support — 2-year limited warranty; Epson CoverPlus Extended Service Plans available for up to a total of 5 years of continuous coverage

Paper-saving feature — reduce paper usage by up to 49 percent

Enhanced enclosure — IPX2-rated enclosure is water-resistant; antimicrobial and easy to clean

Print
Print Method Thermal
Print Speed3 300 mm/sec
Print Resolution 203 dpi
Print Direction Vertical and horizontal
Print Fonts
Fonts/Column Capacity Font A: 12 x 24, 48 cpl (default);
Font B: 10 x 24, 57 cpl; Font C: 9 x 17, 64 cpl; Kanji Font A:
24 x 24, 24 cpl; Kanji Font B: 20 x 24, 28 cpl (Japanese),
36 cpl (Korean)
Character Size Font A: 1.25 mm x 3.00 mm;
Font B: 1.13 mm x 3.00 mm; Font C: 0.88 mm x 2.13 mm;
Kanji Font A: 2.50 mm x 3.00 mm; Kanji Font B: 2.26 mm x 3.00 mm
Character Set 95 Alphanumeric, 18 International, 128 x 43
Graphic, Japanese (11,233 characters of JIS X0213:2004, 1
special character), Simplified Chinese (28,553 characters of
GB18030-2000), Traditional Chinese (13,535 characters of
Big5), Korean (8,224 characters of KSC5601)
Barcode UPC-A, UPC-E, JAN8/EAN8, JAN13/EAN13, Code39,
Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1
DataBar, Code 128 Auto
Two-Dimensional Symbol Printing PDF417, QR Code,
MaxiCode, DataMatrix, Aztec Code, Two-Dimensional GS1
DataBar, Composite Symbology
Media Handling
Media Dimensions 80 mm: 79.5 ± 0.5 x 83 mm
3.13" ± 0.02" (width) x 3.27" (roll diameter)
58 mm: 57.5 ± 0.5 x 83 mm
2.26" ± 0.02" (width) x 3.27" (roll diameter)
Thickness 48 μm – 80 μm
Type Thermal roll paper
Paper Feed Method Friction feed
Paper Back Feed Yes
Width 3.12"/79.5 mm
Paper Loading Drop-in
Roll Diameter (Maximum) 3.27"/83 mm
Core Diameter (Minimum) 0.71"/18 mm
Paper Guide 80 mm (default), 58 mm spacer included
Auto Cutter Partial cut (default) or full cut
Connectivity
Interface (Standard Model)
USB - PD
Ethernet (10/100Base-T/TX)
USB Type-A peripheral device port x 2
Interface (Wi-Fi + Bluetooth Model)
USB - PD
Ethernet (10/100Base-T/TX)
USB Type-A peripheral device port x 2

Supported Operating Systems iOS, Android, Windows®,
Mac® OS X®, GNU (Linux®)
Easy Setting Function NFC6
, Simple AP (Wi-Fi + Bluetooth
model only)
Easy Setting Tool TM Utility (iOS, Android), TM-m30III Utility
(Windows), EpsonNet Config, TM Bluetooth Connector
Reliability7
Printer Reliability 17 million printing lines
MTBF 360,000 hours
MCBF 65,000,000 lines
Auto Cutter Reliability 2.2 million cuts
General
Paper Exit and Loading Top or Front
Spill Resistance IPX2 rated (front exit only)
NV Bit Image Memory 12KB (maximum)
NV Graphics 384KB (maximum)
Receive Buffer 4KB or 45bytes
Development Kit Epson® ePOS™ SDK (iOS, Android,
JavaScript®), TM Print Assistant (iOS, Android), OPOS ADK/OPOS
ADK for .NET (Windows), JavaPOS ADK (Windows, Linux)
Drivers Epson Advanced Printer Driver (APD), TM Virtual Port
Driver, Mac Printer Driver, CUPS Driver
Other Tools Deployment Tool, Monitoring Tool, Epson Firmware
Updater
Software TM Utility (iOS, Android), TM-m30III Utility (Windows
Desktop), EpsonNet Config (Windows, Mac), TM Bluetooth
Connector, Deployment Tool, Monitoring Tool
Audible Alert Optional External Buzzer (OT-BZ20)
LED Indicators Power, Error, Paper, Ethernet, Wi-Fi (built-in),
Bluetooth
Sensors Paper End, Cover Open, Near-End Sensor
D.K.D. Function Yes
Power Consumption Operating 30.6 W, Standby 1.4 W
Power Source Adapter PS-190
Power Saving Yes
Temperature 5 °C to 45 °C
Relative Humidity 10% – 90%
Acoustic Noise Level 53 dBA
Standards and Approvals EMI FCC Class A, ICES-003 Class A
Safety Standard UL62368-1/CSA C22.2 No.62368-1
Dimensions (W x D x H) 5" x 5" x 5",
127 mm x 128 mm x 129 mm
Weight 2.87 lb/1,300 g
Color ENB9 (Epson White), EBCK (Epson Black)
Cash Drawer Kick Yes
Cloud Printing Ready2 Via Server Direct Print technology
USB-Network-Tethering1 Up to 20 Mbps. Supports iOS,
Android and Windows
Smart Device Charging Sync & Charge up to 18 W via USBPD port

Eco Features
Paper-Saving Mode
RoHS compliant
What’s in the Box
TM-m30III, Power Supply PS-190 with AC Cable, Starter Receipt
Paper Roll, Setup Guide, 58 mm Roll Paper Guide
