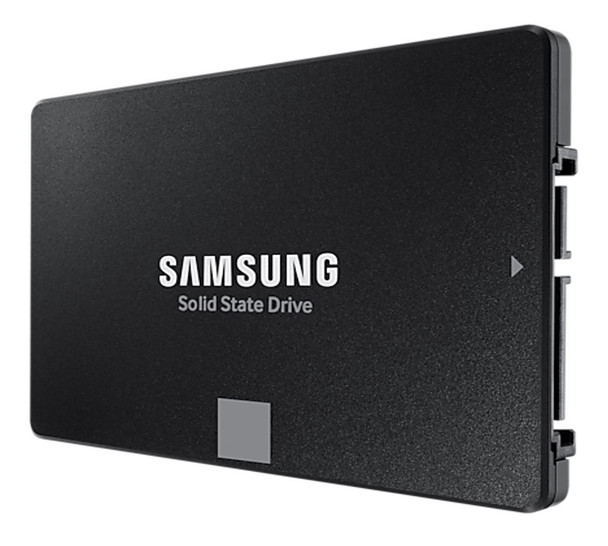

Samsung 870 EVO 1TB 2.5" SATA III 6GB/s SSD 560R/530W MB/s 98K/88K IOPS 600TBW AES 256-bit Encryption 5yrs Wty

Samsung 870 EVO 1TB 2.5" SATA III 6GB/s SSD 560R/530W MB/s 98K/88K IOPS 600TBW AES 256-bit Encryption 5yrs Wty

Specifications
Interface
SATA 6 Gb/s Interface
Sequential Read
Up to 560 MB/s Sequential Read
* Performance may vary based on system hardware & configuration

Sequential Write
Up to 530 MB/s Sequential Write
* Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated

Warranty
5 Year Limited Warranty or 600 TBW Limited Warranty
Application
Client PCs
Weight
Approx. 45.0g Weight
General Feature
Application
Client PCs

Rated Capacity
1,000 GB (1GB=1 Billion byte by IDEMA)

* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor
2.5 inch

Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface

Dimension (WxHxD)
100 X 69.85 X 6.8 (mm)

Weight
Approx. 45.0g Weight

Storage Memory
Samsung V-NAND 3bit MLC

Controller
Samsung MKX Controller

Cache Memory
Samsung 1 GB Low Power DDR4 SDRAM

Special Feature
TRIM Support
TRIM Supported

S.M.A.R.T Support
S.M.A.R.T Supported

GC (Garbage Collection)
Auto Garbage Collection Algorithm

Encryption Support
AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)

WWN Support
World Wide Name supported

Device Sleep Mode Support
Yes

Performance
Sequential Read
Up to 560 MB/s

* Performance may vary based on system hardware & configuration
Sequential Write
Up to 530 MB/s

* Performance may vary based on system hardware & configuration
** Measured with Intelligent TurboWrite technology being activated
Random Read (4KB, QD32)
Up to 98,000 IOPS

* Performance may vary based on system hardware & configuration
** Measured with Intelligent TurboWrite technology being activated
Random Write (4KB, QD32)
Up to 88,000 IOPS

* Performance may vary based on system hardware & configuration
** Measured with Intelligent TurboWrite technology being activated
Random Read (4KB, QD1)
Up to 13,000 IOPS

* Performance may vary based on system hardware & configuration
** Measured with Intelligent TurboWrite technology being activated
Random Write (4KB, QD1)
Up to 36,000 IOPS

* Performance may vary based on system hardware & configuration
** Measured with Intelligent TurboWrite technology being activated
Environment
Average Power Consumption (System Level)
Average: 2.5 W* Maximum: 4.0 W (Burst mode)*

Power Consumption (Idle)
Max. 30 mW*

Allowable Voltage
5 V ± 5 % Allowable voltage

Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)

Operating Temperature
0 - 70°C Operating Temperature

Shock
1,500 G & 0.5 ms (Half sine)

* Actual power consumption may vary depending on system hardware & configuration

Accessories
Installation Kit
Not Available

Software
Management SW
Magician Software for SSD management, Data Migration Software for SSD upgrade

Warranty
5 Year Limited Warranty or 600 TBW Limited Warranty
